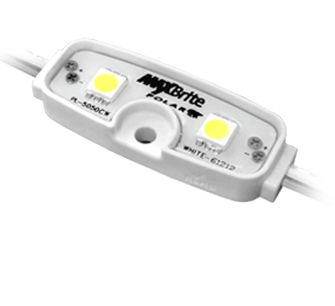

MaxBrite's Polar Waterproof LED Sign Module - Ultra Bright Series
120° Emitting Angle Creates Most Diverse Small and Large Projects.


    Potted Soft Resin Silicone Technology
    Allowed heat dissipation, expand and contract in weather condition

PRODUCT SPECIFICATIONS:
    •  LED Type: High Quality 5050 Trie-Die LED
    •  Color Temperature: Warm White 4500K
    •  CRI Rating: >80
    •  Luminous Flux:  124 lumens per foot
    •  Power Consumption: 0.50 Watt
    •  Input Voltage:            12V DC Constant Voltage
    •  Operating Temperature: -4° to +113°F

    •  Fire Resistant ABS Molded Case
    •  Solder-free Connections for Maximum Strain Relief
    •  3M VHB Adhesive Backing #5952

    •  50,000 hours LED Lifespan
    •  No UV or IR radiation, no mercury or other hazardous materials
    •  UL/cUL, CE, RoHS, Class 2 Certified, IP66

Product Dimensions: 1-3/4" x 5/8'' x 1/4'' ( L x W x H )
Packaged:                 50 Modules per Strand

Applications: Sign Lettering, Cloud Signage, Face and Back Lit Light Box, Etc.


HIGH QUALITY - 100% Satisfaction Guaranteed.
