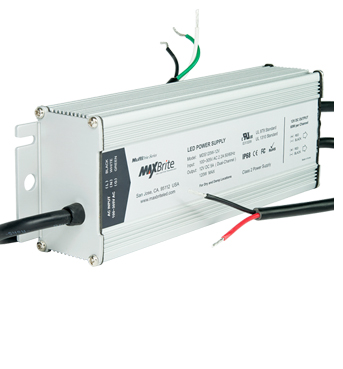

120 Watt LED Power Supply, 12V DC Constant Voltage Output, UL Class 2 Certified
Heavy Duty Aluminum Case Designed for Indoor or Outdoor Applications


PRODUCT SPECIFICATIONS:
  •  Input Voltage: 90-305V AC full range
  •  AC Draw:    ( 1.85A/115V   0.90A/230V )
  •  Frequency: 47hz to 63hz
  •  Output Voltage: 12V DC 5A ( Dual Channel )
  •  Output Power:   120W Max
  •  Efficiency: 85%
  •  Overload Protection: Auto Recovery (over voltage, over current short circuit protection)
  •  Leakage Current: 0.25mA/240 AC
  •  Ripple and Noise: 100mVp-p
  •  Inrush Current:   25°c cold start, 30A at 240AC

ENVIRONMENTAL:
  •  Operating Temperature: -40° to +158°F
  •  Humidity: 20%-95% (RH-NonCondensing)
  •  Cooling:   Air Convection
  •  Vibration Frequency: 10 to 500 Hz
  •  MTBF: Khrs min MIL-HDBK-217F (25°C)

  •  Energy efficient, eco-friendly environment
  •  Certified: UL879, UL1310 Class 2 recognized
  •  Waterproof: IP68 rated for dry and damp locations


Product Dimensions: 8-5/16'' x 2-11/16'' x 1-9/16" ( L x W x H )
Package Weight:       2.00 lbs.


Applications:
Signage and Back Lit Letters, Remote Channel Letters, Light Boxes and Raceway,
Accent Lighting, or any Low Voltage
