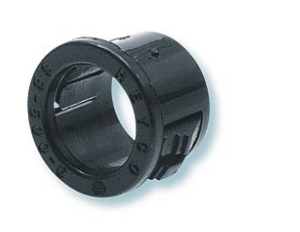

Black HeycoŽ Snap Bushing SB 500-6 Bag of 100

Model No: 500-6P100 BLACK SNAP BUSHING PACK of 100
HEYCO #2053 SB 500-6

Qty In Stock: 129

Price: $13.95 As low as $10.46
Quantity:
Have a Question?
Quantity Discount
1   for   $10.46ea.
DESCRIPTION:

1/2'' HEYCO SNAP BUSHING, UL Component
Multiple Locking Steps for Panel Thickness up to 1/8''


PRODUCT FEATURES:

  • Convert raw-edged holes to smooth, neat, insulated holes.
  • Insulate and mechanically protect electrical cables, tubing, hose, rope, and utility lines.
  • Locking fingers snap into holes with fingertip pressure.
  • Withstand a push back force of 35 pounds.
  • Temperature Range -0.4°F (-18°C) to 221°F (105°C)
  • Tough, UL 94V-2 Flame Retardant Nylon 6/6 will not crack or break.


PRODUCT DIMENSIONS:

  • Overall Dimensions: 0.57''  (14.48mm) D x 0.41'' (10.41mm) H
  • Inside Diameter:      0.39''  (9.91mm)
  • Head Diameter:       0.57''  (14.48mm)
  • Mounting Hole Dia:  0.50''  (12.70mm)


CERTIFICATIONS:

  • UL Recgnized under the Component Program of Underwriters' Laboratory File E12331
